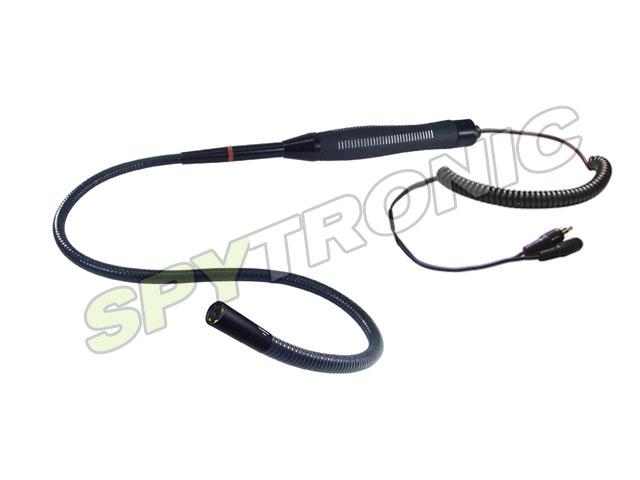

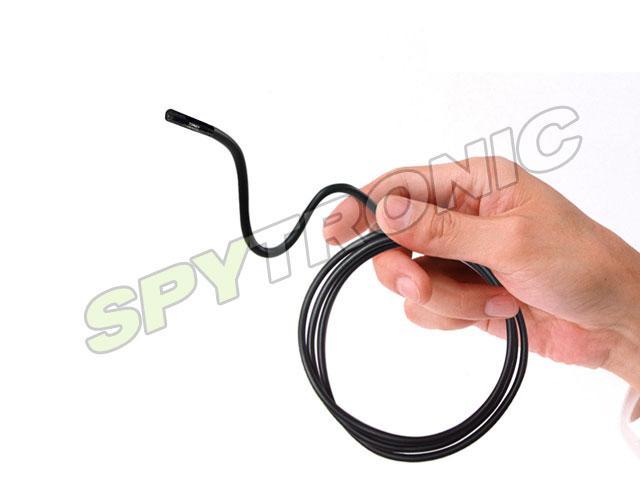

Obedient Snake Camera

  • Discontinued

  • Availability: In Stock
  • Sku: SPT-MIS-L35093T

Ideal to observe details at short ranges in inaccessible areas with precision. This device is not a fiber optic device but consists of a camera at the end of the...

Ideal to observe details at short ranges in inaccessible areas with precision.

This device is not a fiber optic device but consists of a camera at the end of the tube. Therefore you will not longer get blurred images and will save hundreds of dollars.

Consumption : Max 120mA

Gamma : 0.45

Image Transfer Rate : 60 fps

Lens : 3,1mm/F3.4 (Default focus = 5cm)

Min. Object Illumination : 0.1 Lux @ F1.2

Operating Temperature : -10°C à 45°C

Power : 5-12V DC

Resolution : 400 TVL

Scanning System : Entrlacement 2:1

Storage Temperature : -30°C à 60°C

Sync Frequencies : 15.734kHz (H) x 60Hz (V)

Synchronization : Interne

System : NTSC

Video output : Composite 1Vp-p, 75ohms

Viewing Angle : 86 deg.

Wire Length : + 600mm (60cm) peut être commandée sur mesure

Wire Thickness : 9.3mm

Min. Object Illumination : 0.1 Lux @ F1.2

Image Sensor : 1/4'' Couleur CMOS
